19.1.2 Killing Process
If the current process is no longer needed, or if there is a problem with the progress of the process, you can terminate the processing of a specified particular process.
19.1.2.1 "kill" Command – Terminate Process Using PID
"kill" command tells the system to terminate the process running on the system.
[Command Format]
| kill [ options ] <signal> <PID> |
[Command Overview]
■ This terminates the currently running process.
■ User privilege -- Normal user.
[Detail Description]
"kill" command does not handle the target process directly, but rather "kill" command only send a signal to the process to perform a specific action and the process that received the signal have the responsibility to actually perform the action corresponding to the signal. Therefore, if the process receives a signal and does nothing, it would be no effect to send the signal.
There are 64 kinds of signals available in Linux. The main signals are as follows.
| signal no. | signal code | description |
| 1 | SIGHUP | Hang-up. Terminate current connection. It is usually used for re-initialization. |
| 2 | SIGINT | Initialize |
| 3 | SIGQUIT | Shutdown Normally |
| 4 | SIGILL |
|
| 5 | SIGTRAP |
|
| 6 | SIGABRT | Abort |
| 7 | SIGBUS |
|
| 8 | SIGFPE |
|
| 9 | SIGKILL | Terminate application |
| 10 | SIGUSR1 |
|
| 11 | SIGSEGV |
|
| 12 | SIGUSR2 |
|
| 13 | SIGPIPE |
|
| 14 | SIGALRM | alarm |
| 15 | SIGTERM | Terminate. default action of "kill" command |
| 16 | SIGSTKFLT |
|
| 17 | SIGCHLD |
|
| 18 | SIGCONT | continue |
| 19 | SIGSTOP | Stop |
| 20 | SIGTSTP |
|
| ~중략 |
|
|
| 34 ~ 49 | SIGRTMIN ~ SIGRTMIN+15 |
|
| 50 ~ 64 | SIGRTMAX-14 ~ SIGRTMAX |
|
When you specify signal in the "kill" command, you can specify the number, or specify all or part of the code. In other words, if "SIGKILL", you can use "-9", "-SIGKILL", "-KILL", and so on.
If you do not specify a signal, use "SIGTERM" (no "15") as default.
The PID is a process id assigned to a specific process currently being executed. When you look up the process list, there is usually a PID column, which displays the PID assigned to the process.
You can use a negative PID instead of specifying a normal PID for special processing. A negative PID is used to select all process groups. For the process group, see the PGID column of "ps" command. If the PID is "-1", it is used to refer to all process except "kill" process itself and init.
[Main option]
| -<signal> -s <signal> --signal <signal> | Specify the signal to be sent. The signal can be specified by using name or number. The behavior of signals is explained in signal(7) manual page. |
| -l, --list [signal] | List signal names. This option has optional argument, which will convert signal number to signal name, or other way round. |
| -L, --table | List signal names in a nice table. |
The following is the result to display processes only related to the <Motion> program.
| pi@raspberrypi ~ $ ps -ef | grep motion |
| motion 6835 1 1 19:07 ? 00:01:19 /usr/bin/motion pi 7053 6586 0 20:16 pts/0 00:00:00 grep --color=auto motion |
We now want to terminate the above PID "6836" <Motion> program process. Run the "kill" command as follows and run the same command again to see the results. You can then see that the process is no longer visible.
| pi@raspberrypi ~ $ sudo kill 6835 |
|
|
| pi@raspberrypi ~ $ ps -ef | grep motion |
| pi 7075 6586 0 20:27 pts/0 00:00:00 grep --color=auto motion |
19.1.2.2 "killall" Command – Terminate Process with Name
"killall" command is the command to send a signal selectively to only the process that processes the specific command among process running in the system.
[Command Format]
| killall [ options ] <signal> <name> |
[Command Overview]
■ This select only processes that process specific commands in the system and terminate them.
■ User privilege -- Normal user.
[Detail Description]
■ "killall" sends signal to all processes executing the specified command. If no signal is specified, SIGTERM is used by default.
[Main option]
| -e, --exact | Require an exact match for very long names. If a command name is longer than 15 characters, the full name may be unavailable (i.e. it is swapped out). In this case, killall will kill everything that matches within the first 15 characters. With -e, such entries are skipped. killall prints a message for each skipped entry if -v is specified in addition to -e, |
| -i, --interactive | Interactively ask for confirmation before killing. |
| -l, --list | List all known signal names. |
| -s, --signal
| Send this signal instead of SIGTERM.
|
| -u, --user | Kill only processes the specified user owns. Command names are optional. |
[Used Example]
The following shows only processes related to the <Motion> program.
| pi@raspberrypi ~ $ ps -ef | grep motion |
| motion 6835 1 1 19:07 ? 00:01:19 /usr/bin/motion pi 7053 6586 0 20:16 pts/0 00:00:00 grep --color=auto motion |
The following shows the result that we execute the "killall" command for the process executing the <Motion> program command and again check the status of the processes executing the <Motion> program command. Notice that the previously running process has disappeared.
| pi@raspberrypi ~ $ sudo killall motion |
|
|
| pi@raspberrypi ~ $ ps -ef | grep motion |
| pi 7187 6586 0 20:41 pts/0 00:00:00 grep --color=auto motion |
19.1.2.3 Terminating Process Using Desktop Window
When accessing Raspberry Pi's Desktop window, [Task Manager] can be used to monitor the system through the window screen.

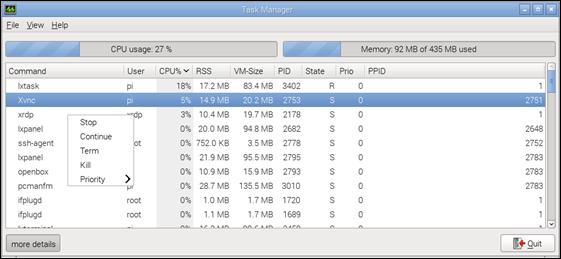

When you run Window Application Menu Menu àAccessories àTask Manager, the [Task Manager] screen appears as shown below.
Here, the user can select the required task to interrupt or resume the operation as shown below, and can terminate the operation if necessary. It provides the ability to manage tasks without entering commands.
Figure 19‑3 Terminating process in Desktop window
Here is what you can do on this screen.
■ Stop
■ continue
■ Terminate
■ Kill
■ Adjust priority
